Created With
Your Needs in Focus
We provide advanced regenerative medicine solutions
that empower clinicians to deliver superior patient care.
Maximize MSC Count in an Affordable and Easy-to-Use System
We spoke to hundreds of physicians about what they would like to see in a BMC system. Using this information, we worked with PhDs and engineers to develop XCELL BMC.
XCELL BMC is revolutionary in its ability to maximize MSC count in such an affordable and easy-to-use system. This system has a specialized device that helps shorten total processing time and reduces human error in the processing steps to maximize total nucleated cell concentration numbers.
XCELL BMC Kit
- 30mL XCELL BMC Processing l Quick Start Guide
- 60mL/120mL XCELL BMC l Instructions for Use
- 30mL : XC-BMC-30 l Instructions for Use
- 60mL : XC-BMC-60 l Instructions for Use
- 120mL: XC-BMC-120 l Supplemental Instructions For Use
Kit includes
| Contents | 30mL Kit | 60mL Kit | Supplemental Kit for 120mL Procedures |
|---|---|---|---|
| APEX P30A Concentrating Device | 1 | 0 | 0 |
| APEX P60A Concentrating Device | 0 | 1 | 1 |
| Apex P60A Cap | 0 | 1 | 1 |
| Syringe 30mL (Luer Lock) | 2 | 0 | 0 |
| Syringe 60mL (Luer Lock) | 0 | 2 | 0 |
| Syringe 10mL (Luer Lock) | 5 | 9 | 9 |
| 18g X 1.5" Needle | 1 | 1 | 0 |
| 150um In-Line Filter | 1 | 1 | 0 |
| 45 Degree Dispensing Tip | 0 | 1 | 1 |
| Straight Dispensing Tip | 1 | 0 | 0 |
| Gauze Sponge 4 x 4 / 8 Ply | 5 | 5 | 0 |
| Utility Drape | 1 | 1 | 0 |
| Gassine Bag | 2 | 2 | 1 |
| Alcohol Prep Pad | 4 | 4 | 0 |
| Universal Male / Female Cap | 2 | 2 | 1 |
| Female Vented Cap (Luer Lock) | 4 | 8 | 8 |
| Male Vented Cap (Luer Lock) | 4 | 4 | 0 |
| Female to Female Connector | 1 | 1 | 0 |
| Adhesive Patient Labels | 5 | 5 | 0 |
| Low-Profile Cap (Luer Lock) | 0 | 1 | 1 |
| Prep Towel | 0 | 0 | 1 |

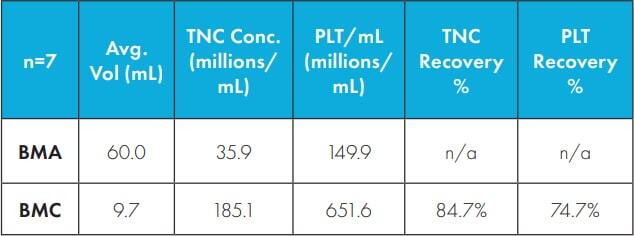

Table 1. Average volume, TNC and Platelet (PLT) concentration in BMA and BMC, and Percent Recovery

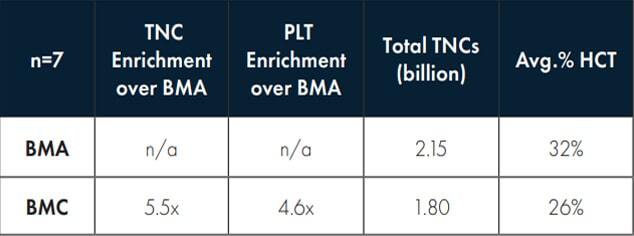

Table 2. Enrichment over BMA in BMC
XCELL BMC White Paper

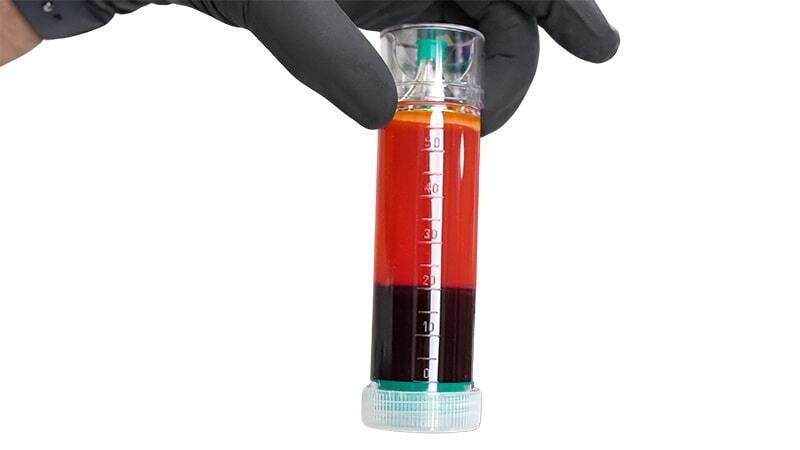

Advanced Bone Marrow Aspiration and Concentration Technique using the XCELL BMC. The kit is designed to recover a high percentage of total nucleated cells and progenitors from centrifuged bone marrow aspirate in a one-step process with minimal sterile breaks.
Designed With You in Mind
We spoke to hundreds of physicians about what they would like to see in a BMC system. Using this information, we worked with PhDs and engineers to develop XCELL BMC.
Preliminary results indicate a recovery of greater than 80% of all nucleated white cells, representing more than 5x over baseline BMA levels, with the flexibility to deliver 3-12cc of BMC, based on the user’s requirements.
XCELL System
Benchtop Processing Station
The XCELL Benchtop Processing Station enables confident buffy coat capture with minimal red blood cells for optimal results. Integrated lighting enhances visibility, while the stable base and intuitive dial ensure consistent, precise samples. 510(k) Class II compliant.
Drucker Centrifuge
Durable, powerful and quiet. The Drucker Boost 4+ Flex is the next generation in centrifuge technology. It is easy to use and ensures an ultra-high quality concentrate.
Specifications:
- Size: 15″ x 17″ x 9.5″
- Weight: 39 lbs
- Max RCF: 3,000
- Up to 15% quieter*
- Auto locking lid
- PRP and BMC pre-programmed cycles
- 6 optional brake settings
- Fast abort function
- International dual power input (110v or 220v)
- Variety of rotor and buckets available
- Requires APEX bucket adapter
- 2 year parts and labor warranty
- National service and support
- Manufactured to ISO13485 compliant specs
- Made in the USA
Procedure Prep Cart
The APEX Biologix Extra Wide Core Cart with white drawers stores and mobilizes supplies while offering a large work surface area. Push/pull handles are built into the cart top for easy gripping. The cart is constructed from HDPE and features a clear PETG door over the bulk storage area. It ships fully assembled.
Specifications:
- 3 white locking drawers, 1 locking bulk storage area with clear PETG sliding door, and 3 inch casters
- 82 pounds on smooth rolling, locking casters for increased stability
- Sturdy construction to handle centrifuge processing
- Durable, high-quality HDPE plastic to avoid corrosion
- Convenient locks on drawers and bulk storage area
- Pre-assembled and ready to use
- Store up to 25 kits
- Materials support the continued use of sanitizing products
- Lifetime guarantee, made in the USA
